The short answer: First responder floor plans are building maps that show police, fire, and EMS teams where to enter, where critical systems sit, and how to move through a building during an emergency. They mark exits, stairwells, utility shutoffs, fire alarm panels and room numbers. Three things decide whether one works: the accuracy of its life-safety assets, the clarity of its navigation paths, and how current it is. Schools also use them for drills and threat assessment.
When a 911 call comes in, every second counts. First responders arrive at a building they may have never entered before, often with incomplete information about where the emergency is happening or how to get there. A well-designed floor plan can cut response time, guide teams to the right location, and help them avoid hazards along the way.
First responder floor plans are more than static drawings. They are operational tools that support fire suppression, active-threat response, medical emergencies, and evacuations. Schools, hospitals, industrial facilities, and commercial buildings all rely on these maps to prepare for the worst-case scenario.
This article walks through what first responder floor plans are, what they must include, how they differ from general building drawings, and how to keep them accurate and accessible. You'll see the standards that guide them, the elements responders need most, and the gaps that leave teams navigating blind.
What Are First Responder Floor Plans and Why Do They Matter?
First responder floor plans are purpose-built maps that show the interior layout of a building, designed specifically for police, fire, EMS, and emergency management teams. They are not architectural drawings or general facility maps. They focus on what responders need to know in the first minutes of an incident: where to enter, where the victim or threat is, and where critical systems are located.
These plans typically include entrances and exits, stairwells, room labels, utility shutoffs, fire alarm panels, sprinkler valves, and hazardous material storage. They use standardized symbols and a clear legend so teams from different agencies can read them quickly. A north arrow and scale help responders orient themselves and estimate distances.
The Difference Between Floor Plans and Site Maps
A floor plan shows the interior of a building. A site map or area map shows the building's exterior, grounds, parking lots, fire lanes, and surrounding structures. Both are part of a complete emergency response package, but they serve different purposes.
Site maps help incident commanders position apparatus, establish staging areas, and control perimeter access. Floor plans help entry teams work through inside. Schools, hospitals, and multi-building campuses need both. A floor plan without a site map leaves responders guessing where to park or how to reach a rear entrance. A site map without floor plans leaves them blind once they step through the door.
Who Uses These Plans and When
Fire departments use floor plans to locate fire alarm panels, sprinkler valves, and utility shutoffs during suppression operations. Police use them to plan entry routes and clear rooms during active-threat incidents. EMS teams use them to find patients and identify the fastest path to an ambulance. School resource officers and security teams use them for drills, threat assessments, and lockdown planning.
The plans are also used before an incident happens. Pre-incident planning walks allow responders to familiarize themselves with a building's layout, identify hazards, and update their maps. Emergency operations centers reference the plans during real-time incidents to coordinate multiple teams and track their locations.
What Must First Responder Floor Plans Include?
Standards and state requirements define what goes on a first responder floor plan. The goal is consistency: a firefighter from one department should be able to read a plan created for another jurisdiction without confusion. That means using common symbols, clear labels, and a predictable structure.
Tennessee Code 49-6-804 provides for school mapping data that must be viewable through public safety software platforms, verified by walk-through, and include accurate floor plans with verified aerial imagery and site-specific labeling (Tennessee Code, 2024). Georgia's Ricky and Alyssa's Law requires all local school systems to implement a mobile panic alert system and procure school mapping data for first responders, effective July 1, 2025 (HB, 2025).
Required Elements on Every Plan
Every first responder floor plan should include the building name and address at the top. A legend or key explains the symbols used. A north arrow shows orientation. Entrances and exits are marked clearly, often with different symbols for main entrances, emergency exits, and Knox box locations.
Room labels identify spaces by name or number. Stairwells, elevators, and refuge areas are marked. Fire alarm panels, sprinkler control valves, and utility shutoffs for gas, electric, and water are shown with standardized symbols. Hazardous material storage, if present, is labeled with the type of hazard.
- Building name and address
- Legend or key for all symbols
- North arrow and scale
- Entrances, exits, and Knox box locations
- Room labels and numbers
- Stairwells, elevators, and refuge areas
- Fire alarm panels and annunciator locations
- Sprinkler control valves and fire department connections

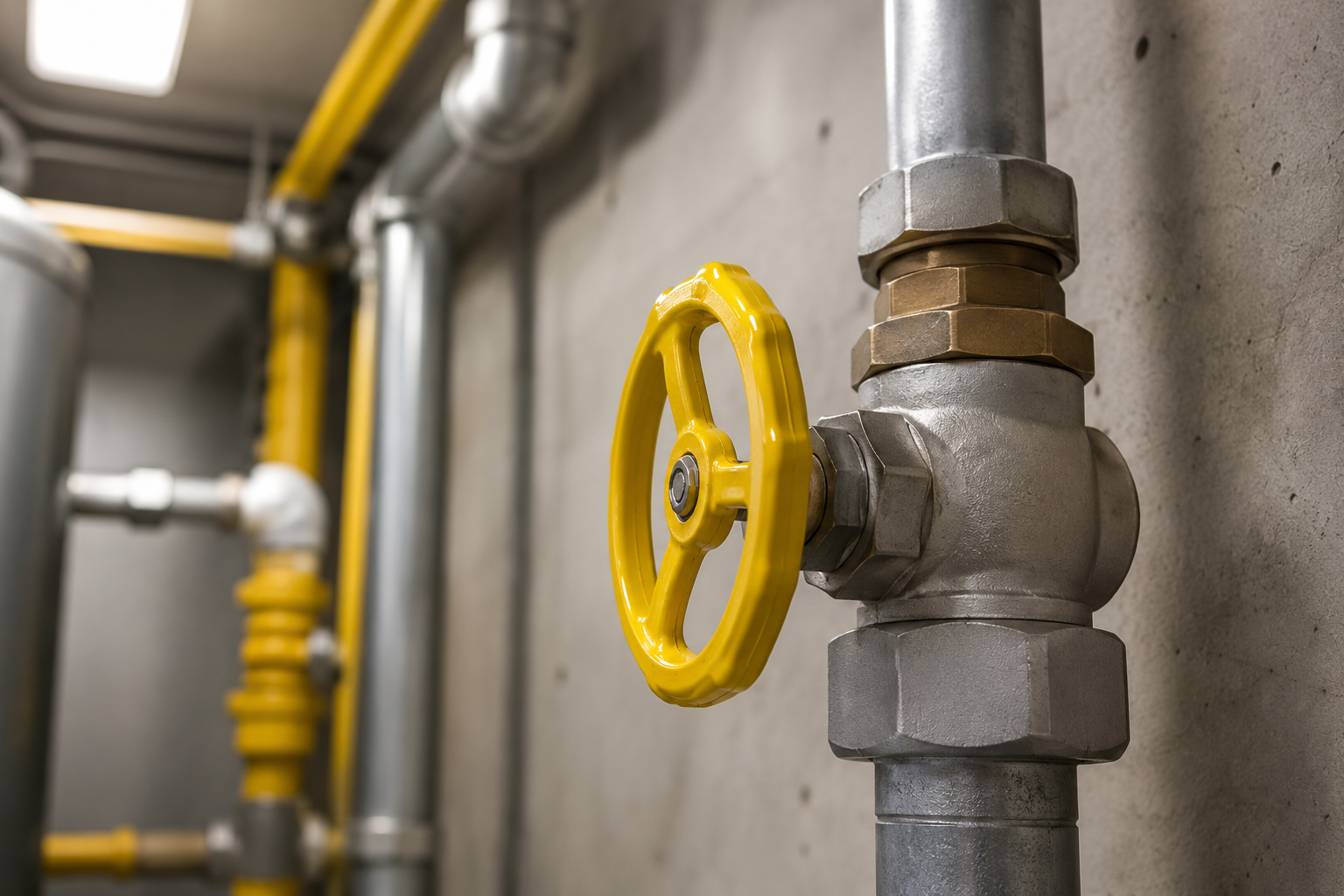

- Utility shutoffs for gas, electric, and water
- Hazardous material storage areas
Life-Safety Assets That Responders Prioritize
Fire alarm panels and annunciator boards are critical. They tell firefighters which zone is in alarm and help them narrow down the fire's location. Sprinkler control valves let them shut off water flow if needed. Utility shutoffs prevent secondary hazards like gas leaks or electrical fires.
Knox boxes, which hold building keys for emergency access, are marked on both the site map and the floor plan. HVAC controls matter because smoke can spread through ductwork. Elevator machine rooms are marked because elevators are often shut down during fires. Refuge areas, required in some buildings for occupants who cannot use stairs, are shown so responders know where to find people who may need assistance.
How Do Digital Floor Plans Improve Response Time?
Paper floor plans and static PDFs are still common, but they have limits. They go out of date the moment a building changes. A renovation, a room repurpose, or a new piece of equipment can make a plan inaccurate. Digital floor plans solve that problem by making updates easier and enabling features that paper cannot support.
Digital plans can be layered, showing different information for different users. A fire department might see sprinkler zones and alarm panels. A police team might see camera locations and access control points. EMS might see AED locations and medical supply rooms. All of that information can live in the same file, toggled on or off as needed.
| Capability | Static PDF or paper plan | Living digital plan |
|---|---|---|
| Staying current | Redrawn manually, often years apart | Re-captured on a schedule, changes visible between captures |
| Layering by role | One view for everyone | Fire, police and EMS each see the assets they need |
| Route planning | Read off the page under pressure | Entry routes and choke points worked out in advance |
| Verifying what is there | Trusts the last person who drew it | Checked against a capture of the actual building |
| Access during an incident | Binder at the front desk or a shared drive | Available on any device to whoever is responding |
Interactive Maps and Indoor Navigation
Interactive digital maps let responders zoom in, measure distances, and search for specific rooms or assets. Some platforms support indoor navigation, calculating the shortest path from an entrance to a target location. That capability is especially valuable in large or complex buildings where responders may not be familiar with the layout.
NIST PSCR specifies that first-responder indoor positioning systems must determine 3D location to better than a 3-meter radius at 95 percent probability, without beacons (NIST, 2026). That standard reflects the need for accurate indoor positioning in environments where GPS does not work.
Version Control and Real-Time Updates
Digital platforms make it easier to keep plans current. When a building changes, the facility team updates the digital file, and the new version is pushed to all users. That eliminates the problem of responders showing up with an outdated PDF that no longer matches the building.
Some platforms integrate with building information modeling systems, pulling data directly from architectural models. Others use lidar or photogrammetry to capture as-built conditions. The result is a plan that reflects the building as it exists today, not as it was designed years ago.
What Are the Gaps in Most Floor Plans Today?
Many first responder floor plans are incomplete, outdated, or hard to read. They were created once, often by an architect or engineer who did not specialize in emergency response, and never updated. They sit in a file cabinet or on a shared drive, and responders do not see them until an incident happens.
The most common gap is missing life-safety assets. A plan might show exits and stairwells but not fire alarm panels or utility shutoffs. Or it might show those assets but use non-standard symbols that responders do not recognize. Another common problem is poor labeling. Room numbers are missing, or they do not match the numbers on the doors.
- Life-safety assets missing entirely, such as alarm panels or utility shutoffs
- Non-standard symbols that responding crews do not recognize
- Room numbers absent, or not matching the numbers on the doors
- No legend, north arrow, or scale
- Renovation drift, where walls and room uses have changed since the plan was drawn
- Stored somewhere responders cannot reach during an incident
Outdated Plans and Renovation Drift
Buildings change. Walls get moved, rooms get repurposed, and equipment gets relocated. If the floor plan is not updated to match, responders arrive with a map that does not reflect reality. That can lead to confusion, delays, and dangerous assumptions about where exits or hazards are located.
Renovation drift is especially common in schools and hospitals, where buildings are constantly being adapted to new uses. A classroom becomes a storage room. A lab becomes an office. A hallway gets blocked off. If those changes are not captured on the plan, the plan becomes a liability instead of an asset.
Lack of Coordination Between Agencies
Fire, police, and EMS often use different floor plans for the same building. One agency has a plan from five years ago. Another has a plan from last year. A third has no plan at all. When they respond together, they are working from different information, which creates confusion and slows coordination.
Standardizing plans across agencies requires a shared platform or at least a shared format. Some jurisdictions use a central repository where all agencies can access the same plans. Others rely on individual departments to maintain their own copies, which leads to version control problems.
See your building the way a first responder needs to. Interactive digital maps let responders zoom in, measure distances, and search for specific rooms or assets, capabilities that distinguish modern critical incident mapping from static PDFs.
Ark builds an operational digital twin of your facility from a single capture, so your team and responders can prepare, route, and defend every decision. Schedule a Demo.
How Do You Keep Floor Plans Accurate Over Time?
Accuracy is not a one-time achievement. It requires a process for capturing changes, verifying information, and distributing updates. The best approach depends on the size of the facility, the frequency of changes, and the resources available.
For small facilities with infrequent changes, an annual review may be enough. A facility manager walks the building, checks the plan against current conditions, and updates any discrepancies. For larger or more dynamic facilities, a more frequent review cycle is needed. Some organizations review plans quarterly or after every major renovation.
Walk-Throughs and Verification
Walk-throughs are the most reliable way to verify a floor plan. A responder or facility manager walks the building with the plan in hand, checking that every room, exit, and asset is correctly labeled and located. They note any changes and update the plan accordingly.
Some jurisdictions require walk-throughs as part of their pre-incident planning process. Fire departments visit schools, hospitals, and industrial facilities on a regular schedule, updating their plans and familiarizing crews with the layout. That process serves two purposes: it keeps the plans accurate, and it gives responders a mental map of the building before an emergency happens.
Automated Capture and As-Built Models
Lidar, photogrammetry, and other capture technologies can create as-built models of a building without manual measurement. A team scans the building, and software processes the data into a 3D model or 2D floor plan. That approach is faster and more accurate than hand-drawing a plan, and it captures details that might be missed in a manual survey.
As-built models are especially useful for complex or irregularly shaped buildings where traditional floor plans are hard to create. They can also be updated more easily. If a room changes, the team re-scans that area and merges the new data into the existing model.
What Role Does Spatial Intelligence Play in Emergency Preparedness?
Spatial intelligence is the ability to understand and reason about the physical world in three dimensions. In emergency preparedness, that means knowing not just where things are, but how they relate to each other, how people move through space, and how conditions change over time.
A traditional floor plan is a snapshot. It shows where walls and doors are, but it does not show how smoke will spread, where choke points will form during an evacuation, or which entry route will get responders to the victim fastest. Spatial intelligence adds that layer of reasoning on top of the map.
Routing and Simulation Inside the Building
Routing algorithms calculate the shortest or safest path from one point to another inside a building. They account for obstacles, locked doors, and one-way paths. Simulation tools model how people will move during an evacuation, identifying bottlenecks and testing different exit strategies.
Improvements were statistically major (paired t-tests, p<0.001; Cohen's d>1.0), ranging from 17 percent on simple first-floor incidents to nearly 40 percent on obstacle scenarios (IJSRA, 2025). That kind of analysis is only possible when the floor plan is paired with spatial reasoning tools.
Layering Live Data on the Map
A living digital twin goes beyond a static floor plan by integrating real-time data. Camera feeds, access control logs, and sensor readings can be pinned to specific locations on the map. During an incident, responders see not just the building layout but also what is happening inside right now.
That capability changes how teams prepare and respond. Instead of walking a building to check camera coverage, a security team can assess it inside the digital twin. Instead of guessing where a threat is, police can see which doors have been breached and which cameras are still active. Instead of relying on a caller's description of their location, dispatchers can see where the call is coming from on the map.
How Ark Strategic Supports First Responder Preparedness
Ark Strategic builds living digital twins of facilities using lidar and camera capture, proprietary point cloud processing, cloud meshes, and integrated data layers. The result is a geospatially and contextually aware model of the building and its lifecycle, not a static map that goes stale the day the building changes.
The platform provides alphanumeric grid overlays and gridded facility maps, which many jurisdictions require. It also goes beyond them. The living twin stays current across the building's lifecycle, giving responders and facility teams richer, more accurate context than a flat, frozen artifact can provide.
Capture and Processing Into a Living Twin
Ark's capture teams scan a facility using lidar and camera technologies. The point cloud data is processed into a 3D model enriched with cloud meshes and integrated data layers. Where a site calls for them, 3D Gaussian Splats can be layered on for photorealistic visualization. The exterior twin includes RTK-derived latitude and longitude, so every place on the facility exterior has a real-world coordinate.
That living twin is the foundation for everything else. It is not a drawing that someone made once. It is a model that reflects the building as it exists today, and it can be updated as the building changes.
Assessing a Site Inside the Twin Instead of Walking It
Facility teams and responders can assess a building inside the digital twin without physically walking every room. They can measure distances, check sightlines, and identify coverage gaps for cameras or sensors. That saves time and makes it easier to plan security improvements or emergency response strategies.
For pre-incident planning, responders can familiarize themselves with a building's layout before they ever step inside. They can identify entry points, locate critical systems, and plan their approach. That preparation reduces confusion and speeds decision-making during an actual incident.
Camera and Sensor Coverage Pinned to the Twin
Cameras, access control points, and other sensors can be pinned to specific locations on the digital twin. Each device's coverage area is shown, along with any gaps. That makes it easy to see which areas are monitored and which are blind spots.
During an incident, live feeds from those cameras can be viewed in the same interface as the map. Responders see the building layout and the live video feed side by side, giving them situational awareness that a standalone camera system cannot provide.
Routing and Emergency Simulation Against Real Geometry
Ark Scenario routes inside the twin, optimizing responder entry routes, modeling evacuation flow against the building's real geometry, identifying choke points, and pre-positioning responder staging. That routing happens within the simulation and the twin, using the actual layout of the building, not a simplified network graph.
Emergency simulations test different scenarios: an active threat on the third floor, a fire in the cafeteria, a medical emergency in a remote wing. The twin shows how people will move, where bottlenecks will form, and which routes will get responders to the scene fastest. That analysis informs training, drills, and response plans.
Re-Capture at Intervals and Compare Captures Over Time
Buildings change, and the digital twin can be updated to match. Ark re-captures a facility at intervals, and the new scan is compared to the previous one. Changes are highlighted automatically, so facility teams can see what has moved, been added, or been removed.
That comparison is valuable for compliance, maintenance, and security. It ensures that the floor plan stays accurate without requiring manual updates. It also creates a record of how the building has evolved over time, which can be useful for audits, investigations, or planning future renovations.
The Bottom Line
First responder floor plans are operational tools, not decorative drawings. They must be accurate, current, and readable under pressure. The best plans include life-safety assets, use standardized symbols, and are updated regularly to reflect changes in the building.
Digital platforms and spatial intelligence are changing what is possible. Interactive maps, indoor routing, and living digital twins give responders richer context and faster access to the information they need. The gap between a static PDF and a living model is the difference between guessing and knowing.
Accuracy is not a one-time achievement. It requires a process for capturing changes, verifying information, and distributing updates. The facilities that invest in that process are the ones that give their responders the best chance of arriving at the right place, at the right time, with the right information.
Frequently Asked Questions
What is the difference between a floor plan and a site map?
A floor plan shows the interior layout of a building, including rooms, exits, and life-safety assets. A site map shows the building's exterior, grounds, parking lots, and fire lanes. Both are needed for complete emergency preparedness.
How often should first responder floor plans be updated?
Plans should be updated whenever the building changes, such as after a renovation, room repurpose, or equipment relocation. At minimum, an annual review is recommended to verify accuracy and catch any missed changes.
What are the most critical elements on a first responder floor plan?
Critical elements include entrances and exits, stairwells, fire alarm panels, sprinkler control valves, utility shutoffs, Knox box locations, and hazardous material storage. Clear room labels and a north arrow are also essential.
Can I create first responder floor plans in-house, or do I need specialized help?
Simple plans can be created in-house using floor plan software or CAD tools, but accuracy and compliance with standards require expertise. Specialized capture technologies like lidar produce more accurate as-built models, especially for complex buildings.
How do digital floor plans integrate with dispatch systems?
Some platforms are designed to integrate with computer-aided dispatch systems, allowing dispatchers to pull up floor plans when a 911 call comes in. That integration is on the roadmap for many systems, though implementation varies by jurisdiction and platform.
